The temperature and humidity controller product is mainly used for regulating and controlling the internal temperature and humidity of equipment such as medium and high voltage switchgear, terminal boxes, ring network cabinets, box transformers, etc. It can effectively prevent equipment failures caused by low and high temperatures, as well as creepage and flashover accidents caused by moisture or condensation.
The intelligent temperature and humidity controller displays the temperature and humidity value in the way of Nixie tube, with heater and sensor fault indication, and RS485 communication interface for remote monitoring. Users can set system parameters by pressing keys to program. This instrument integrates measurement, display, control, and communication, with high accuracy and wide measurement range. It is a temperature and humidity measurement and control instrument suitable for various industries and fields

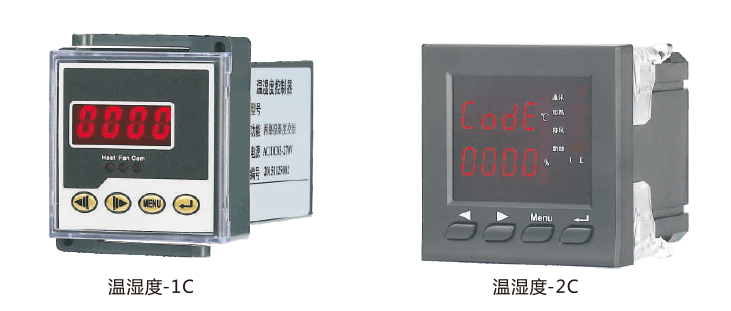

Product appearance

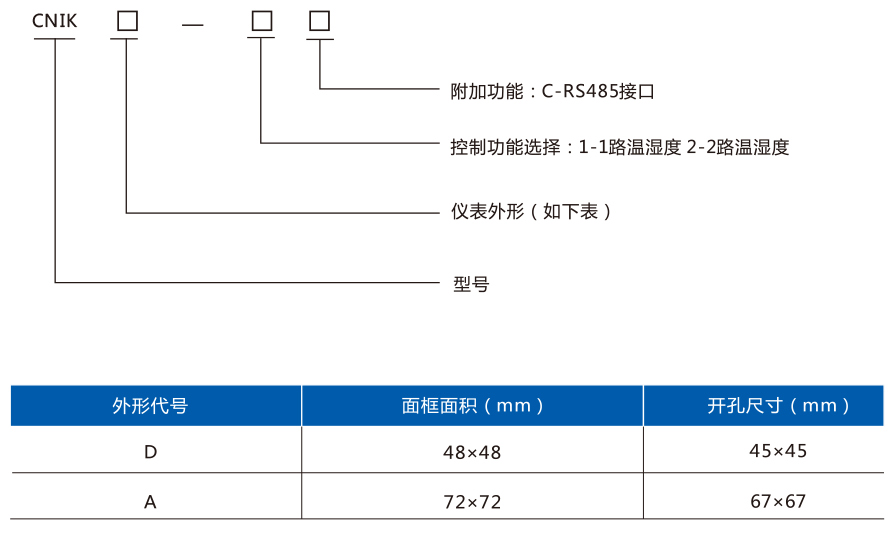

Naming Meaning
explain:
1. CNIKDD can connect up to one temperature and humidity sensor;
2. CNIKDA can connect up to 2 temperature and humidity sensors;
3. Each sensor corresponds to two sets of control output contacts (passive), which are respectively connected to a heater and a fan. The heater is used for heating or dehumidifying, and the fan is used for cooling.

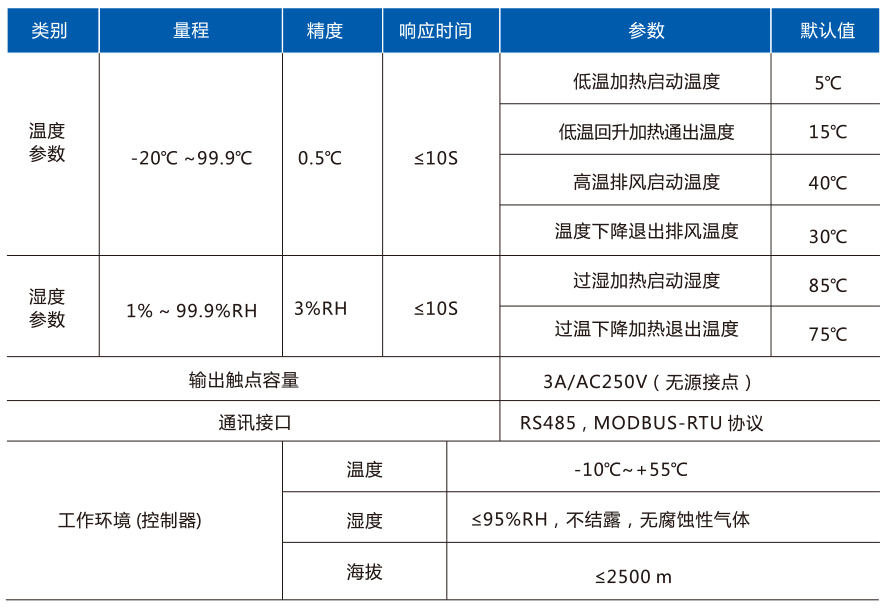

Technical indicators

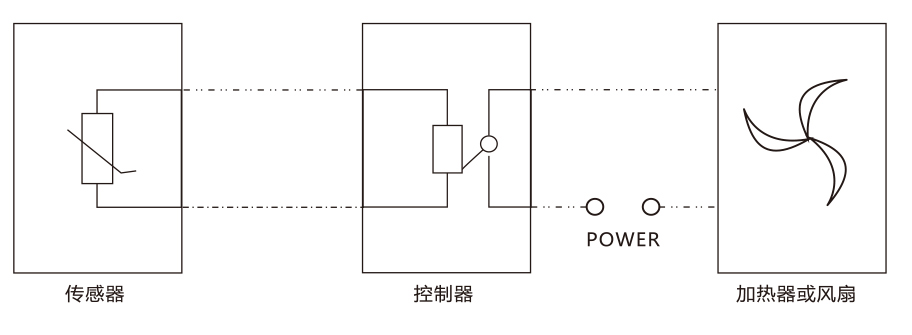

working principle
